Wear-Resistant Edge Profiles

---

Product Overview

Steelox SA supplies Half-Arrows manufactured from wear-resistant steel. These profiles are designed for demanding ground engaging and abrasion-intensive applications requiring high strength and excellent wear resistance.

Half-Arrow are heat-treated to ensure consistent hardness and durability, making them ideal for earthmoving, mining, agricultural, and heavy-duty industrial applications.

---

Program of Dimensions

PROFILE NR.	W (mm)	W1 (mm)	T (mm)	T1 (mm)	WEIGHT (kg/m)
101	101	46	11	21	9,40
151	151	68	16	32	21,05
203	203	127	19	32	30,84
254	254	130	29	57	65,65
254	254	130	40	68	88,66

---

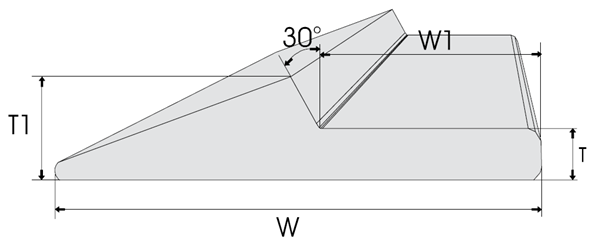

Technical Sketch – Half-Arrow Edge Profile

Below is the dimensional reference sketch corresponding to the table above:

Legend:

• W = Total width
• W1 = Lower step width
• T = Total thickness
• T1 = Lower thickness section

(Final production drawing can be added as a proper technical diagram in your branded Word/PDF layout.)

---

Lengths

Standard length: 3000 mm

---

Surface Type

Heat-treated mill finish.

---

Tolerances

• Thickness: ± 1,0 mm
• Width: ± 3,0 mm
• Length: -0 + 50 mm
• Straightness: Maximum deviation of 5,0 mm per meter
• Surface evenness: Maximum deviation of 5,0 mm per meter

---

Packaging

Banded in bundles with a maximum weight of 2 tonnes per bundle.

---

Certification

Material can be supplied with:

• Analysis certificate
• Hardness certificate

Available upon agreement at time of order.
